Displaying velocity and displacement waveforms

Submitted by kashima on Fri, 07/06/2018 - 07:21

ViewWave can display velocity and displacement waveforms that are calculated from the acceleration data by the integration. By choosing [Velocity] or [Displacement] in the [View] menu, velocity or displacement waveforms will appear in the main window.

acceleration waveforms

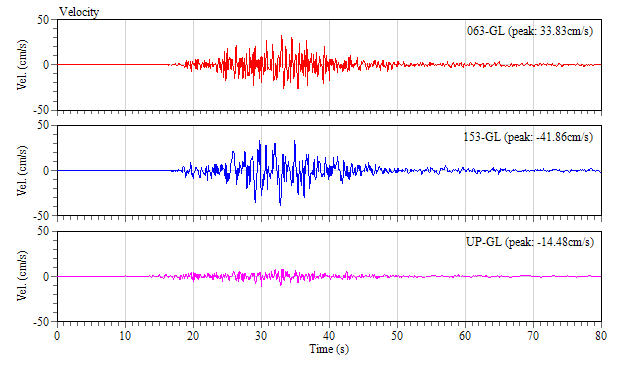

(a) Velocity waveforms

Velocity waveforms

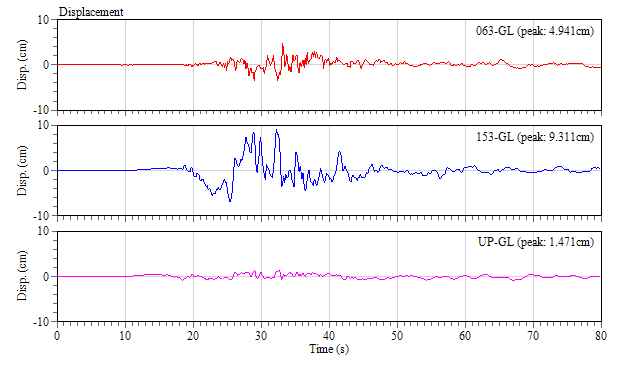

(b) Displacement waveforms

ViewWave provides some methods of integration. The integration method can be selected from the [Calculation] tab in the [Option] dialog box that can be opened from the menu [Tool] -> [Option].
